Leopard-Universal welding machines

MIG/MAG

Leopard - welding machines - Range

Gas or liquid cooled Multiprocess welding machines, compact or with separate wire feeder.


One power source - 4 technologies

  • MIG/MAG-welding
  • MMA welding
  • TIG (Lift arc) welding
  • Carbon arc gouging

The new Leopard range is available from 400 - 550 A max. weld power. stepless, remote conrtrol, electronically controllable welding inductor, hot start and arc force for MMA and digital instruments as standard.


The transistor power source (chopper) „Leopard“ have highest energy efficiency according to stanard IEC 61000 (1-11) and  use less power. The power sources are applicable in
different mains voltages (mains: 208 V till 575 V).



Produktionsstandort-Deutschland

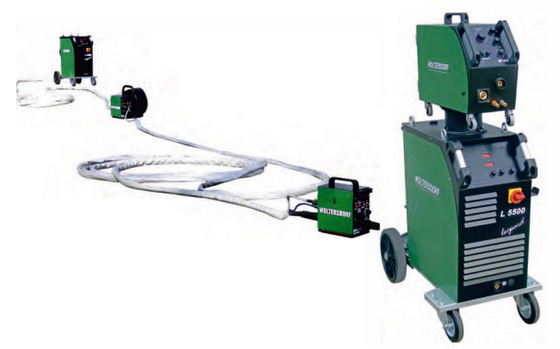

Schweißen und Fugenhobeln

MIG 41 W PUSH/PULL
makes bulky and heavy wire feed units superfluous.

1x interconnection cable 30 m between power source and first wire feeder and 1x interconnection cable 25m with wire guide in connection cable between first and second wire feeder unit.





L4000
L5500 MIG 41 PUSH/PULL
Art.- Nr 13L4000 13L5500 MIG41-PP
dreiphasrige-Netzspannung 3x400-415 V, 50/60 Hz 3x400-415 V, 50/60 Hz 3x400-415 V, 50/60 Hz
traege-sicherung 25AT 32AT 32AT
stromeinstellbereich 10-400A 20-550A 20-500A
einschaltdauer

350A-60% ED
270A-100% ED

500A-60% ED
420A-100% ED

stufenlose-regelung
schutzart 23 23 23
verwendung-schweissgeraete-bei-erh-elektr-gefaehrdung
masse 940 x 360 x 760 940 x 530 x 910
550 x 230 x 450
160 x 210 x 270
gewicht 126 150 + 16 7,5
4-rollen-drahtvorschub
drahtstaerke 0,6 - 1,2 0,8 - 1,2 0,8 - 1,6
max-rollendurchmesser 300

300
WF 41C

300
MIG 41W
programmierbares-geraet Option: Synergie Option: Synergie -
verbingungskabel - max. 40m max. 70m
Watercooling Option
MMA
TIG
